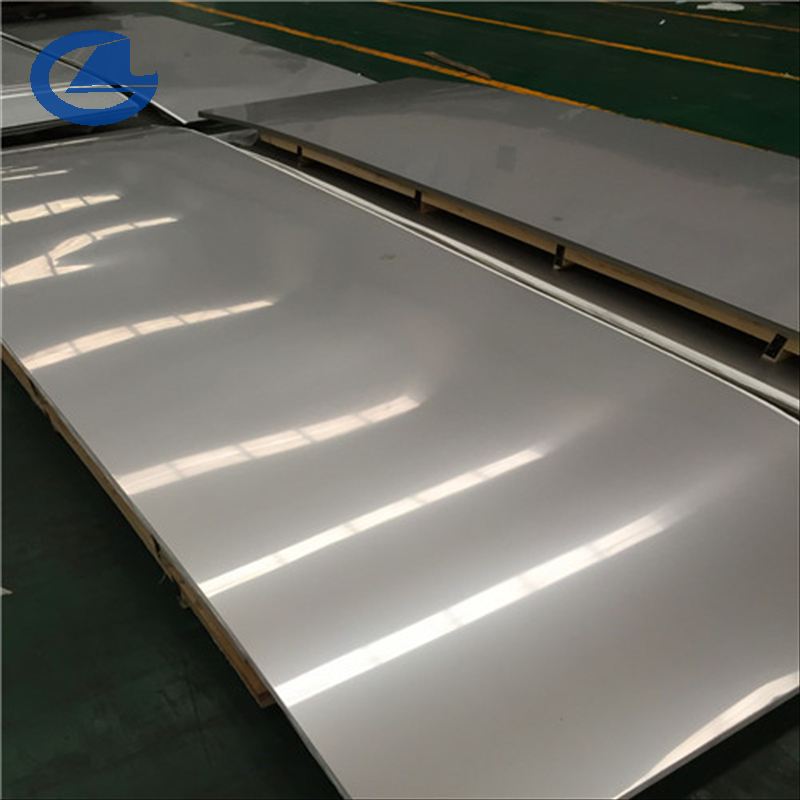

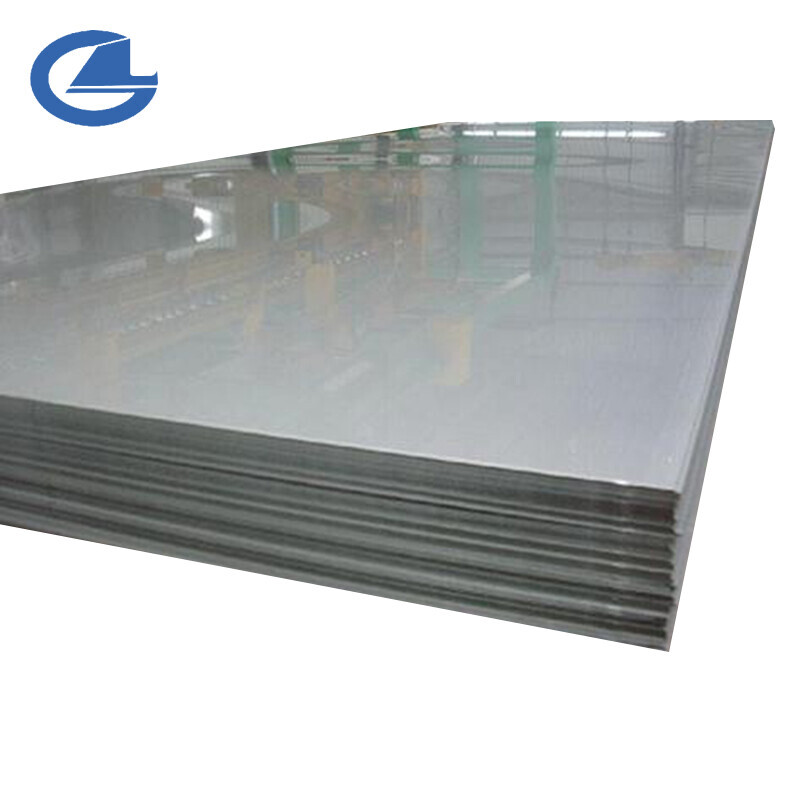

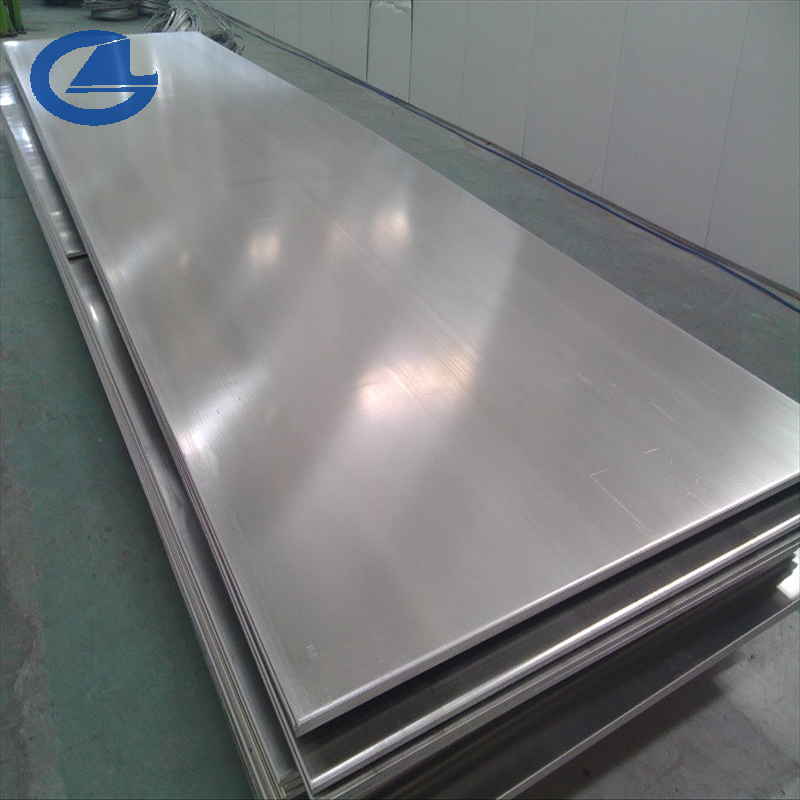

317 Stainless Steel Plate

Stainless Steel Plate surface of stainless steel plate is smooth and can resist the corrosion of atmosphere, steam and water. It is widely used in chemical industry, medicine, construction, vehicles, kitchenware and other fields ‌

Email：chloe@lgsdsteel.com

WeChat：+86 18354173223

Phone：+86 18354173223

WhatsApp：+86 18354173223

Inquiry Now →

Parameter

Product introduction

‌ stainless steel plate has high plasticity, toughness and mechanical strength, while resistant to acid, alkaline gas, solution and other media corrosion ‌‌. The surface of stainless steel plate is smooth and can resist the corrosion of atmosphere, steam and water. It is widely used in chemical industry, medicine, construction, vehicles, kitchenware and other fields ‌

Product Name	Stainless Steel Plate
Standard	GB、ASTM、JIS、EN、GB/T3280-2009、GB/T4237-2009、GB/T4238-2009、GB/T3280-2007、GB/T4237-2007、JIS G4304-2005
Material	201、202、303、304、304L、309S、310、310S、314、316、316L、630、840、904L and so on
Length	1000-6000mm
Width	1000-2000mm or customized
Thickness	0.1-60mm
Surface Finish	BA、2B、No.1、No.3、N0.4、8K、HL

Performance characteristics

Product surface is smooth, no steel slag and burr.

The product size is controllable and can be adjusted according to customer requirements.

Good mechanical properties, with good weldability and formability.

Strong corrosion resistance, effective resistance to air, water and chemicals, suitable for harsh environments.

Can provide quality inspection certificate, and the company has ISO, CE, SGS multiple product certification.

Technical data

Compositionnominal wt%	Elongation %	Hardness
301 Annealed 1/4H 1/2H FH	C .15, Mn 2.0, P .045, S 0.3, Si .75, Cr 16-18, Ni 6-8, N .1	40	95 Rb
302	C 0.15, Mn 2.0, P .045, S .03, Si .75 Cr 17-19, Ni 8-10, N .1	40	92 Rb
303	C 0.15, Mn 2.0, P .045, S .03, Si .75 Cr 17-19, Ni 8-10, N .1	30-50	92 Rb
304	C .08, Mn 2.0, P .045, S .03, Si .75 Cr 18-20, Ni 8-10.5, N .10	40	92 Rb
304L	C .03, Mn 2, P .045, S .03, Si .75, Cr 18-20, Ni 8-12, N .1	40	92 Rb
305	C .12, Mn 2.0, P .045, S .03, Si .75, Cr 17-19, Ni 10.5-13,	40	88 Rb
309/309S	Type 309 - C .2, Mn 2.0, P .045, S.03, Si .75 Cr 22-24, Ni 12-15, Fe bal Type 309S - C .08, Mn 2.0, P .045, S .03, Si. 75, Cr 22-24, Ni 12-15, Fe Bal	49/ 44.6	-
310L	Mn 1.10, Cr 24.5, Ni 20.5 (nominal)	40	95 Rb
310 310S	310: C .25, Mn 2, P 0.045, S 0.03, Si 1.5, Cr 24-26, Ni 19-22, Fe balance 310S: C 0.08, Mn 2, P 0.045, S 0.30, Si 1.5, Cr 24-26, Ni 19-22, Fe balance	45/42/6	-
316	C .08, Mn 2.0, Si .75, Cr 16-18, Ni 10-14, Mo 2-3, P .045, S .03, N .1, Fe Bal	40	95 Rb
316L	C .03, Mn 2.0, Si .75, Cr 16-18, Ni 10-14, Mo 2-3, P .045, S .03, N 0.1, Fe Bal	54	95 Rb
316Ti	C .08, Mn 2.0, Si .75, Cr 16-18, Ni 10-14, Mo 2-3, P 0.045, S 0.03, N 0.1, Ti 0.15-0.70, balance Fe	248	76 Rb
317	Type 317 - C .08, Mn 2.0, Si .75, Cr 18-20, Ni 11-15, Mo 3-4, P .045, S .03, N .10, Fe Bal	35	95 Rb
321	C .09, Mn 2.0, P .045, S .03, Si .75, Cr 17-18, Ni 9-12, Ti .7, N .1 Fe Bal	40	95 Rb
334	C 0.03, Mn 1.0, P .02, S .015, Si .75, Cr 19-19.5 Ni 19-20, Ti .4, Al .4, Cu .2 Fe Bal	40	82 Rb
347	C .08, Mn 2.0, P .045, S .03, Si .75, Cr 17-19, Ni 9-13, Cb+Ta 1.0, Fe Bal	40	95 Rb
348	C .08, Mn 2.0, P .045, S .03, Si.75, Cr 17-19, ni 9-13, Cb+Ta 1.0, Ta .10, Co .2, Fe Bal	40	92 Rb
410	C .15, Mn 1.0, Si 1.0, Cr 11.5-13.5, Ni 0.5, S .03, Ph .04	34	38-45 Rc
416	C 0.15, Mn 1.25, Si 1.0, Cr 12-14, P 0.06, S 0.15, Mo 0.60, Fe Balance	15-30
420	C .15-.40, Mn 1.0, Si 1.0, Cr 12-14, Ni 0.5, S .03, Ph .04	15-30	53-57 Rc
440A	C .60-.75, Mn 1.0, Si 1.0, Cr 16-18, Mo .75, Ni .50, S.03, Ph .04	20	57-60 Rc
440C	Cr 16.5, C 1.0, Si 1.0	-	58 Rc
13-8 Mo	Cr 13, Ni 8, Mo 2, Al, low C, balance Fe	18	33 Rc
15-5PH	Cr 15, Ni 5, Cu 3, Cb, balance Fe	10	33 Rc
15-7Mo	Cr 15, Ni 7, Mo 2, AL 1, balance Fe	30	88 Rb
17-4PH	Cr 17, Ni 4,Cu 3, Cb, balance Fe	8	33 Rc

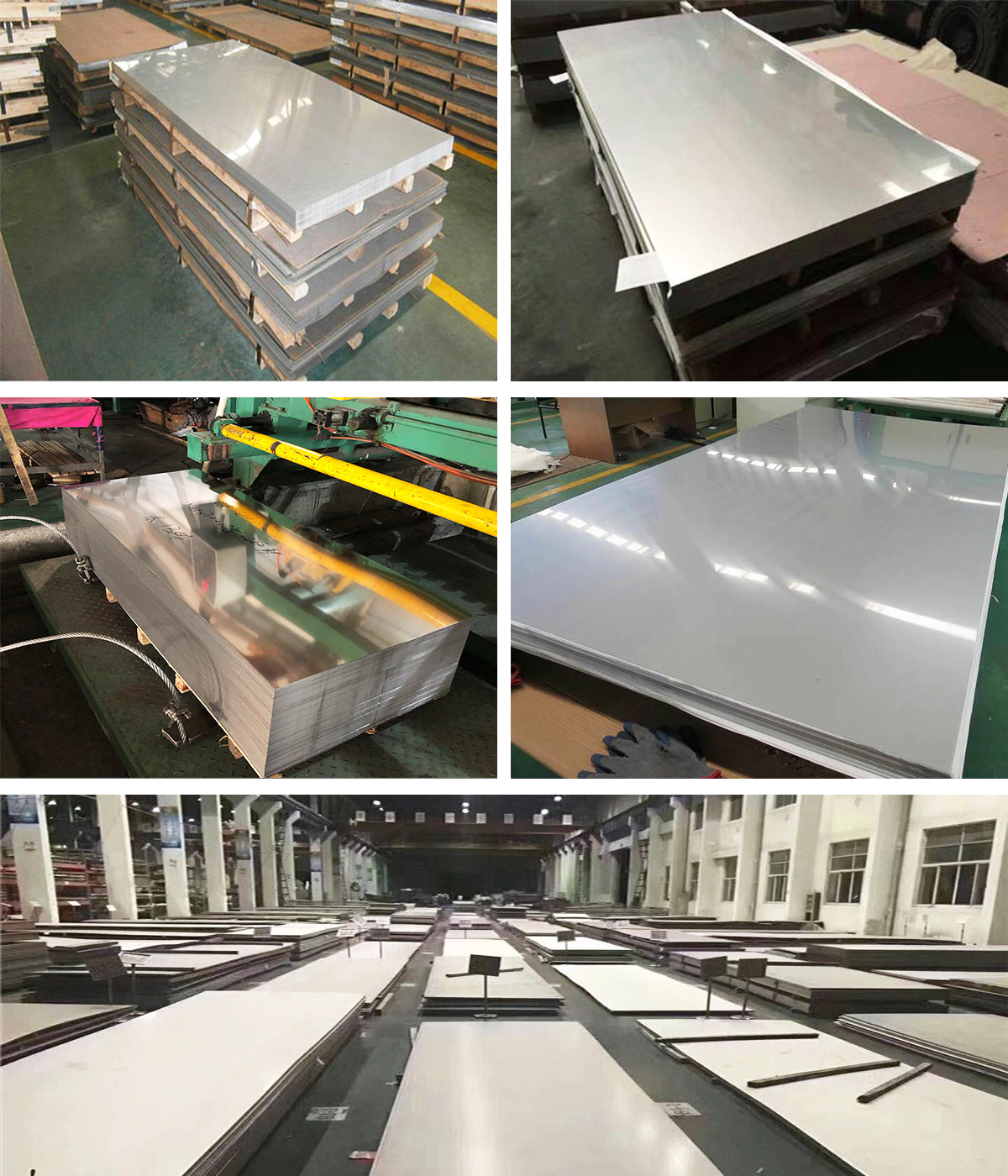

Product Show

Factory appearance and appearance

With strong financial strength, we have set up large factories and warehouses in more than 10 cities across the country, with a stock of more than 100000 tons, saving customers procurement time, ensuring customers' production cycle and product quality, and being the quality partner of end customers.

Product packaging appearance

1. Samples may be provided by the seller and freight borne by the buyer.
2. We have full stock,and can deliver within short time. Many styles for your choices.
3. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4. All of our products are produce by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
5. We have many years of experience in manufacturing and selling steel and we cherish every order from our honor.

Customer Visit Feedback

With 15 years of experience in R&D and production of high-quality steel, we have been selected as one of China's top 500 enterprises for 15 consecutive years. With strong financial strength, we have set up large factories and warehouses in more than 10 cities across the country, with a stock of more than 100000 tons
